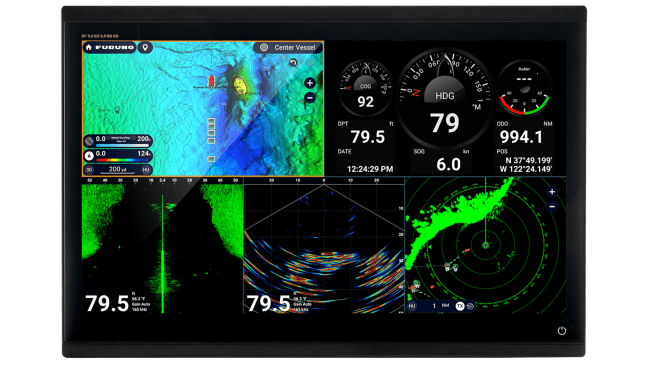

Furuno Plotter TZT22X

SKU: IMD041120BA
EAN: IMD041120BA
Stock:

NavNet TZtouchXL is a feature-rich chartplotter and a compact integration platform.

A wide range of modules, echosounder transducers and DRS radar antennas makes it easy to configure the solution for the vessel’s operational requirements.

With a subscription, TZtouchXL provides full access to TZ MAPS, offering a comprehensive and up-to-date range of chart presentations as well as online chart updates.

Available as a panel PC.

The standard set includes:
1 stk. TZT22X-E

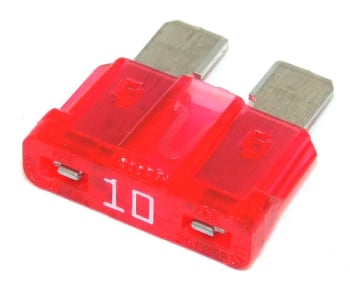

Blade Fuse FRU-60V-FU-10A 03S003142

00019491410
Furuno DRS 12A NXT

The DRS NXT is an award-winning series of solid-state (magnetron-free) network radars that can be integrated with TimeZero and NavNet. The DRS12A-NXT is a 100 W X-band radar with a range of 96 NM. It can be supplied with a 4- or 6-foot open antenna. It includes RezBoost™, Dual Range Mode, Fast Target Tracking, and Target Analyzer™, which utilizes the Doppler effect to analyze and present collision risks.

IMD040160AA-b
Furuno DRS 6A NXT

The DRS NXT is an award-winning series of solid-state (magnetron-free) network radars that can be integrated with TimeZero and NavNet. The DRS6A-NXT is a 25 W radar with a range of 72 NM. It can be supplied with a 4- or 6-foot open antenna. It includes RezBoost™, Dual Range Mode, Fast Target Tracking, and Target Analyzer™, which utilizes the Doppler effect to analyze and present collision risks.

IMD03658000-b
Furuno DRS 4D NXT

The DRS NXT is an award-winning series of solid-state (magnetron-free) network radars that can be integrated with TimeZero and NavNet. The DRS4D-NXT is a 25 W radar with a range of 48 NM. It is delivered with a 61 cm enclosed antenna. It includes RezBoost™, Dual Range Mode, Fast Target Tracking, and Target Analyzer™, which utilizes the Doppler effect to analyze and present collision risks.

IMD03456001-b
Furuno DRS 2D NXT

Compact solid-state network radar with display and operation through TimeZero Professional and NavNet. The DRSD2-NXT features a lightweight 48 cm enclosed antenna. Available functions are the same as for other DRS NXT models, including Target Analyzer™, RezBoost™, ATR – Auto Target Acquire, and FTT – Fast Target Tracking, as well as 2-range mode.

IMD040650AA
Furuno DRS 6A X-class

The DRS X-Class series replaces the DRS-4A and DRS-6A. An improved receiver and advanced signal processing provide crystal-clear echoes at both short and long distances. Lightning-fast target tracking of up to 30 vessels. New compact antenna.

IMD034550BB-b
Furuno DRS 4DL+

DRS 4DL+ has a compact 45 cm, 24 rpm radome antenna with UHD (Ultra High Definition) digital signal processing.

IMD03660001-b
