Furuno DRS 4D NXT
Contact us
Skjemaet er nå sendt inn og en av våre selgere vil snarlig ta kontakt.
The DRS NXT is an award-winning series of solid-state (magnetron-free) network radars that can be integrated with TimeZero and NavNet. The DRS4D-NXT is a 25 W radar with a range of 48 NM. It is delivered with a 61 cm enclosed antenna. It includes RezBoost™, Dual Range Mode, Fast Target Tracking, and Target Analyzer™, which utilizes the Doppler effect to analyze and present collision risks.
Solid-state network radar (25 W)
- 25 W solid-state Doppler radar
- 48 NM range
- Supplied with 61 cm closed antenna
- Adjustable horizontal beamwidth from 2° to 3.9°
- Automatic optimal antenna rotation speed (rpm) based on selected range
- Dual Range Mode
- Target Analyzer™
- 100-target ARPA
Radar | |
---|---|
Series | DRS |
Radar band | X-band (3 cm) |
Scanner size | Closed 60 cm |
Transmitter power | 24 W |
RPM | 24, 36, 48 |
Radar type | Solid State, Network radar |
Product details | |
---|---|
Display | Selectable size, addon |
Power supply | 12-24 VDC |
Coastal E is an electronic chart system (ECS) in line with Norwegian requirements for electronic chart systems as replacement for paper charts, as outlined in the Norwegian Maritime Directorate's circular RSV 14-2022 and RSV 16-2022. Coastal E is accepted for vessels up to 24 meters that don't have carriage requirement for ECDIS. Coastal E 1624 is a panel-pc with a 16” display. The solution is based on TECDIS. It is just as user-friendly and includes the same functionality, however it is not a wheelmarked ECDIS.
Coastal E is an electronic chart system (ECS) in line with Norwegian requirements for electronic chart systems as replacement for paper charts, as outlined in the Norwegian Maritime Directorate's circular RSV 14-2022 and RSV 16-2022. Coastal E is accepted for vessels up to 24 meters that don't have carriage requirement for ECDIS. Coastal E 2224 is a panel-pc with a 22” display. The solution is based on TECDIS. It is just as user-friendly and includes the same functionality, however it is not a wheelmarked ECDIS.

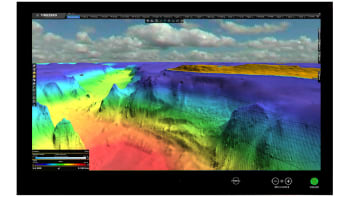

TimeZero Professional is a professional plotter with all the necessary functions for navigation and fishing. The solution features full BarentsWatch integration, an outstanding weather forecast presentation with long-term predictions, and an overview of oceanographic data. It is integrable with Furuno radar, echo sounder, multibeam echo sounder, and sonar. Easy import of data from other chart systems.
The FR-12 is a compact radar solution with a 12.1'' LCD color display and an integrated control panel for easy operation. The FR-12 can be combined with a selected Furuno DRS NXT or X-Class antenna (not included), providing the solution with high performance and modern features for safe navigation. The FR-12 is NMEA2000 certified, ensuring seamless integration with other relevant Furuno instruments such as the SCX-20/21 satellite compass and AIS FA-70.
The FR-10 is a compact radar solution with a 10.4'' LCD color display and an integrated control panel for easy operation. The FR-10 can be combined with a selected Furuno DRS NXT or X-Class antenna (not included), providing the solution with high performance and modern features for safe navigation. The FR-10 is NMEA2000 certified, ensuring seamless integration with other relevant Furuno instruments such as the SCX-20/21 satellite compass and AIS FA-70.
