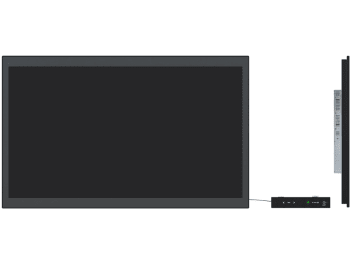

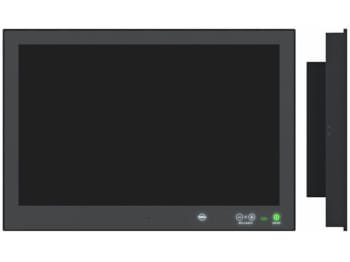

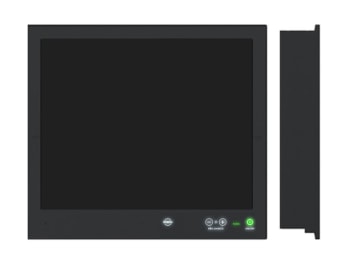

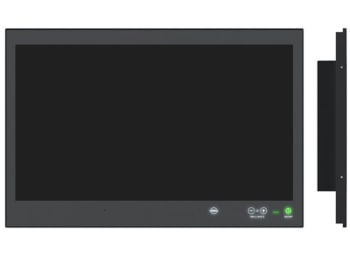

Hatteland Series X

4:3 format 15''
5:4 format 17''- 19''
16:10 format 26''
16:9 format 24'' + 27''- 55''

Functions:

• DVI-I IN: 2 × 29p DVI female (or as VGA IN with adapter)
• DP1.2 IN : 1 x 20p DisplayPort (female)
• Composite Video IN: 2 × BNC connector (female)
• SCOM RS-422/485: 2 × 5-pin terminal block 3.81, n/isolated + buzzer
• VGA OUT : 1 x 15p HD D-SUB (female) - Clone of VGA IN**
• SCOM+Touch : 1 x USB TYPE A Connector (female)
• Ethernet : 1 x RJ45 Connector for Remote Control
• SCOM RS-232 : 1 x 9p D-SUB (female) n/isolated+Buzzer
• Potentiometer / User: 1 × 9p D-SUB (male)
• AC Power IN: 1 × standard IEC inlet
• DC Power IN : 1 x 2-pin Terminal Block 5.08
