Furuno Multi-beam Echosounder DFF-3D
The DFF-3D features a 165 kHz multibeam transducer with 41 beams in a 120° fan shape, providing a detailed view of fish and bottom structures, intuitively presented in 3D. Echo sounder function with single or triple echogram display. Integrable with TimeZero Professional and NavNet TZT. With a compact transducer and easy installation, the DFF-3D is an excellent solution for coastal fishing vessels, smaller fishing boats, and workboats.
Multibeam Echosounder Module with 3D Presentation
- Multibeam transducer with 41 beams in a 120° fan shape
- Echosounder display with single or triple echogram views
- Frequency: 165 kHz
- Output power: 800 W
- 3D presentation of fish and bottom structures
- Heave compensation via NavNet TZT
- Integration with TimeZero Professional and NavNet TZT
- Easy installation
MULTIBEAM ECHOSOUNDER MODULE DFF-3
The DFF-3D features a 165 kHz multibeam transducer with 41 beams arranged in a 120° fan shape. It provides detailed, easy-to-understand 3D imaging of fish and bottom structures. Choose between single or triple echogram displays. Fully integratable with TimeZero Professional and NavNet TZT. With a compact transducer and simple installation, the DFF-3D is a highly effective solution for coastal fishing vessels, smaller workboats, and inshore operators.
NEED A LARGER SOLUTION?

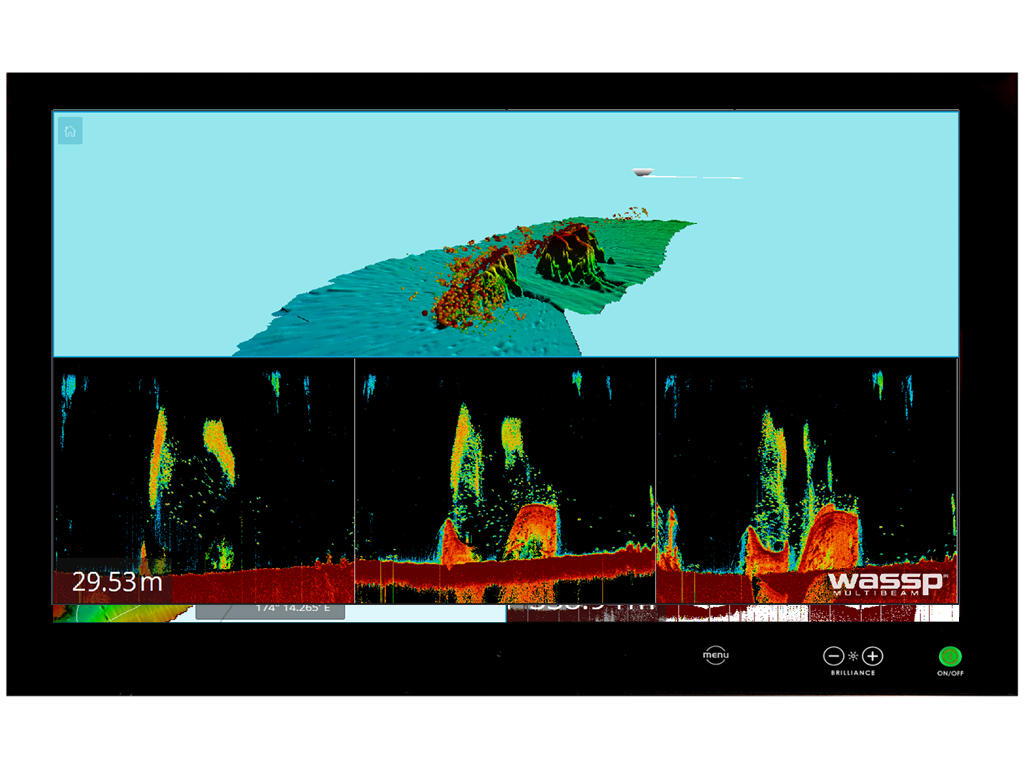

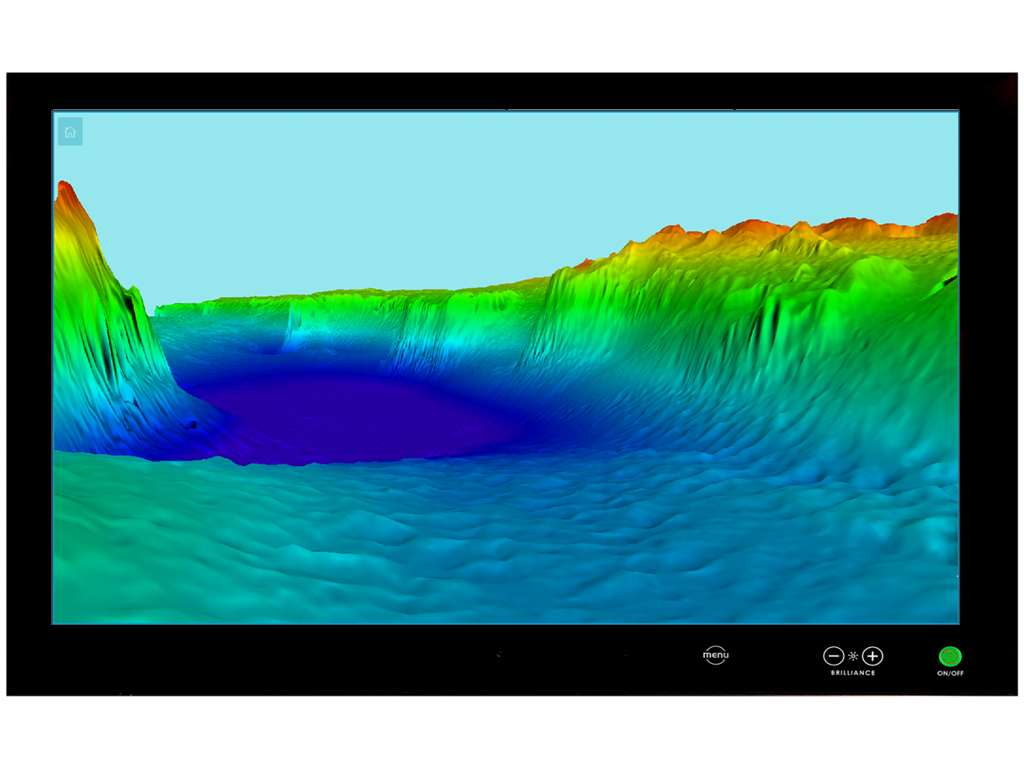

For more advanced requirements, we recommend the WASSP multibeam echosounder series. Models are available for both fishing and survey applications:
| Echo sounder | |
|---|---|
| Frequency | 165 kHz |
| Transmitter power | 800 W |
| Range (depending on transducer) | 2-1200 m |
| Product details | |
|---|---|
| Power supply | 12-24 VDC |
| Connections | LAN TZ/NavNet |
