WASSP F3XLi System

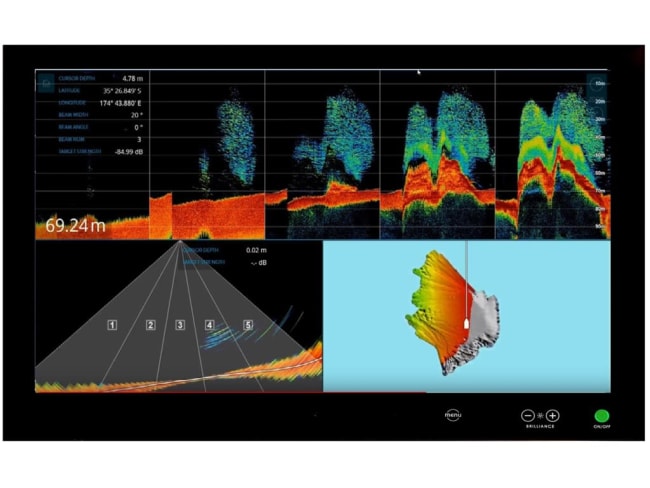

WASSP F3X-L has a multibeam transducer with 224 beams in a 120-degree fan shape. Flexible software with "all" functions available. Radar and echo sounder presentation, side scanner, high-resolution depth presentation, bottom hardness, fish in the water column, etc. F3X-L has a frequency of 80 kHz and is suitable for larger fishing vessels operating in deep water. Integrable with MaxSea TimeZero.
Multibeam Echosounder for Fishing and Seafloor Mapping (80 kHz)
- 80 kHz transducer
- High-resolution echo imagery
- View fish throughout the water column
- 120° vertical slice display
- Generate your own bottom maps and save them for later use
- Intuitive menus and simple operation
- New noise management functions, including manual center frequency adjustment
- New transceiver with 224 beams (compared to 112 beams in G1 and G2), providing significantly higher accuracy and detail during surveying
- New signal processing technology improves target detection, bottom hardness reading, and noise reduction
- Reliable, high-performance processor with fan-assisted cooling beneath heat sinks ensures optimal temperature regulation
- Can run on a dedicated WASSP PC or be integrated with TimeZero. Fully integrated operation and display available from TimeZero version 3
Multibeam Echosounder for Fishing and Seafloor Mapping (60–95 kHz)
The WASSP F3X-L features a multibeam transducer with 224 beams arranged in a 120° fan shape. The flexible software offers access to all available functions—including radar and echosounder display, side scan, high-resolution depth presentation, bottom hardness visualization, and fish detection throughout the water column. Operating at 80 kHz, the F3X-L is ideal for larger fishing vessels operating in deep waters. It integrates seamlessly with MaxSea TimeZero.
| Product details | |
|---|---|
| Display | Selectable size, addon |
| Power supply | 12 VDC, 24 VDC |
| Connections | NMEA 0183 |
| Technology | FFS - Selectable frequency |
