Feature-rich navigational sounder with dual-frequency display
- Dual-frequency display (50/200 kHz)
- Accurate, reliable, and dependable
- Packed with features and easy to use
- Depth data from the last 24 hours is stored
- Can be connected to a printer for echogram printing
- Bridge Alert Management (BAM) certified
- 8.4" color display with adjustable brightness

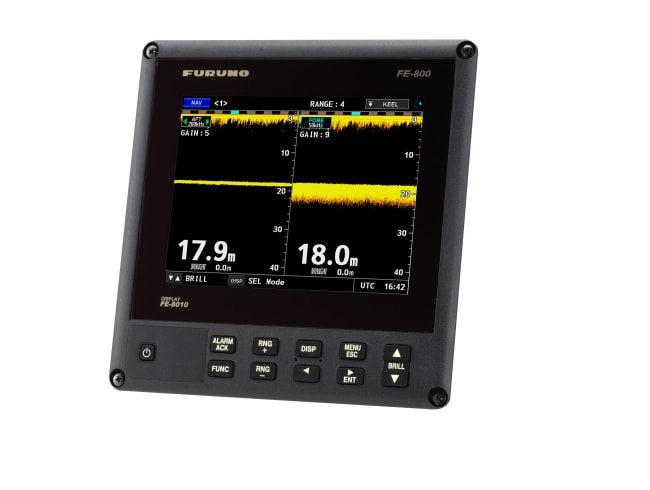

Navigational Echo Sounder FE-800
The FE-800 is an advanced navigational echo sounder with dual-frequency display (50/200 kHz). It delivers accurate and reliable performance and offers a variety of display modes for navigation data, vessel-specific data, and history.
Navigational echosounder | |
---|---|
Transmitter power | 1 kW RMS |
Roll tolerance +/- | 10 ° |
Scale | 5 m, 10 m, 20 m, 40 m, 100 m, 400 m, 800 m |
Frequency | 50 kHz, 200 kHz |
Product details | |
---|---|
Display | 8,4'' LCD color display |
Connections | NMEA 0183, LAN, RS-232 |
Approval/Class | IMO/MED |
The standard set includes:
1 stk.
Skjermenhet FE-8010-E
