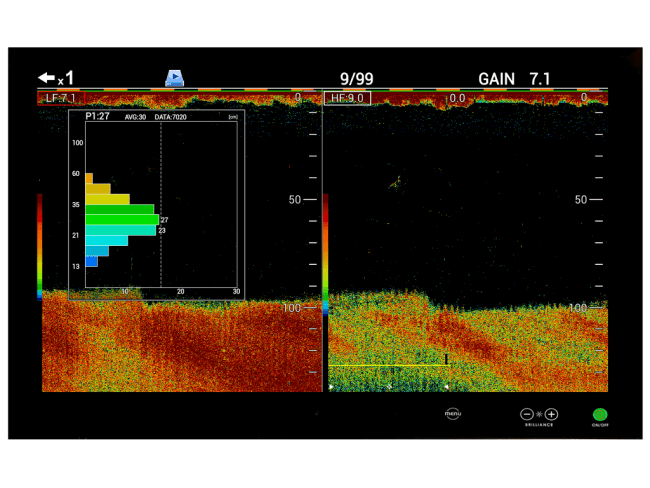

The FCV-1900 displays echoes clearly and precisely in the water column and near the seabed. The increased signal processing speed ensures improved target separation and clarity. Easy installation with FFS technology. The FCV-1900 replaces the FCV-1200L processor or other echo sounders without requiring a transducer replacement. Additionally, the FCV-1900 can be upgraded to the FCV-1900B, a high-resolution echo sounder with TruEcho CHIRP™, or to the FCV-1900G with TruEcho CHIRP™ and a fish size indicator.

Description
Specifications

Heave-Stabilized Echosounder with Adjustable Frequency

Displays up to four different frequencies
Excellent target separation between fish and bottom
Automatic echo gain control
Dual gain control allows simultaneous adjustment for better visibility in changing water conditions or vessel speeds
Improved control unit for simple and intuitive operation
Echo rewind function for reviewing past sonar data
FFS (Furuno Free Synthesizer) for adjustable operating frequency
Suitable for all types of fishing

HEAVE-STABILIZED ECHOSOUNDER WITH ADJUSTABLE FREQUENCY

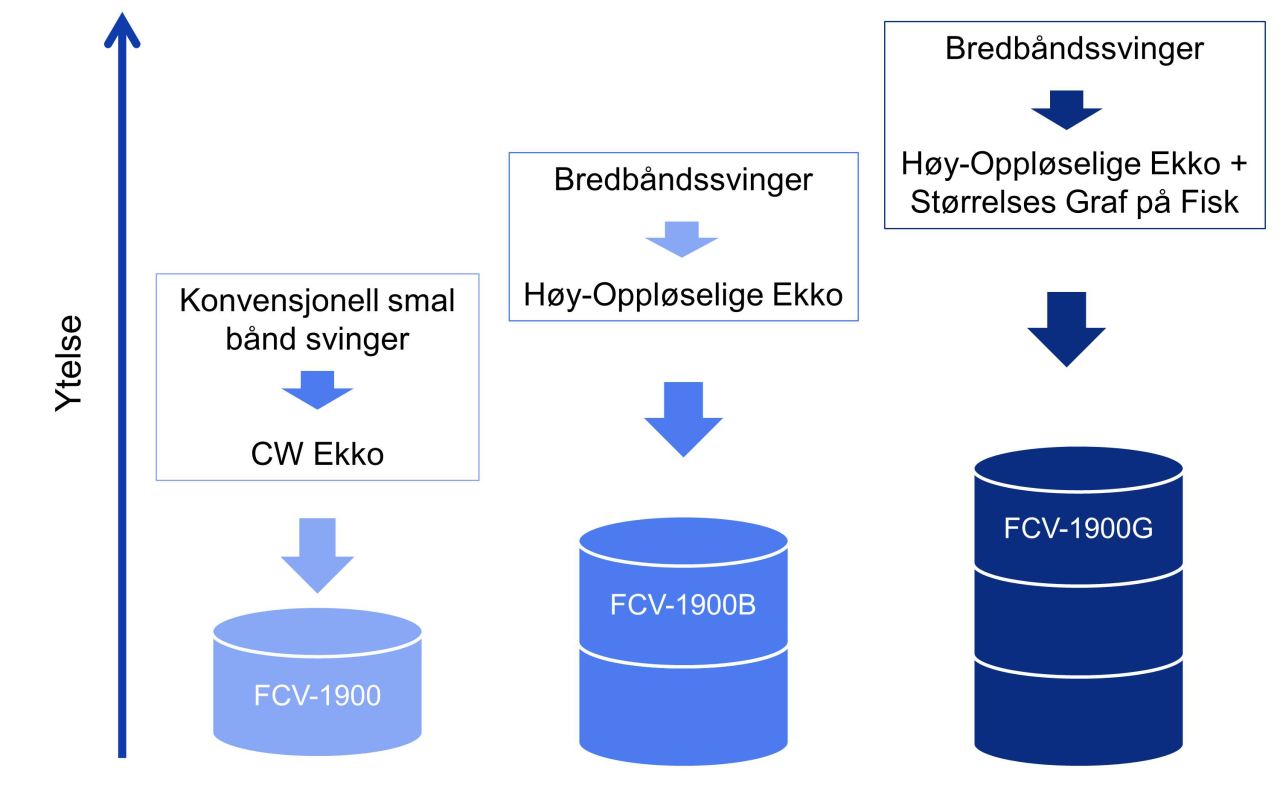

The FCV-1900 delivers clear and precise echo presentations in the water column and close to the seabed. Enhanced transmission speed ensures excellent target separation and clarity. Easy installation is enabled by FFS (Furuno Free Synthesizer) technology. The FCV-1900 is a direct replacement for the FCV-1200L processor or other echosounders—without needing to replace the transducer. Additionally, the FCV-1900 can be upgraded to:

FCV-1900B – High-resolution TruEcho CHIRP™ model
FCV-1900G – TruEcho CHIRP™ with fish size indication

Upgrade Options:

From FCV-1900 to FCV-1900B
From FCV-1900 to FCV-1900G
From FCV-1900B to FCV-1900G

Echo sounder
Frequency	15-200 kHz
Transmitter power	1 kW, 2 kW, 3 kW
Range (depending on transducer)	5-3000 m

Product details
Display	Selectable size, addon
Power supply	12-24 VDC
Connections	NMEA 0183, LAN, USB, CIF, HDMI
Technology	ACCU-FISH, FDF (Furuno Digital Filter), FFS - Selectable frequency

The standard set includes:

1 stk. Control unit FCV-1902-E

1 stk. Processor unit FCV-1901-E
