Weather radar WR2120 without brac/cable

SKU: SN300000091

Product name

Product number

First name

Last name

Telephone number

Comment

Would like to be contacted via Email Phone

Beskriv hva hendvendelsen gjelder og en av våre selgere vil deretter ta snarlig kontakt.

he WR-2120 is our most advanced X-band doppler weather radar. The dual polarization features attenuation correction, increased observation capabilities and a higher precision for localized weather reporting. The radar uses doppler technology and gives accurate radial wind velocity measurements.

Description

Dual polarization doppler radar with high resolution weather data

Doppler and dual polarization with simultaneous transmission and receiving (STAR)
Recovers intensity loss and attenuation caused by heavy rain for increased accuracy
High sensitivity and high spatial resolution
Detection of rainfall and radial wind
Classification of rainfall type, intensity, wind and turbulence
Solid State technology gives high reliability and low maintenance cost
Among the lightest and most compact doppler weather radars on the market

Compact dual polarization weather radar

The Furuno WR-2120 weather radar is a dual polarized radar. This model simultaneously transmits and receives pulses in both horizontal and vertical orientation. As a result, the returning frequencies provide measurements of the horizontal and vertical dimensions of detected targets, thus providing the possiblity to present high precision echoes of the size, shape, and variety of targets.

STAND-ALONE or MULTI-RADAR CONFIGURATION

The Furuno WR-2120 weather radar can be operate as a stand-alone system for local weather observations or be a part of a multi-radar system in order to cover a wider area. Together with other weather radars utilizing the S-band or even C-band for long range coverage, the Furuno weather radars can be a very useful gap fillers, using the X-band and thus providing very detailed and high resolution presentation of weather observations within limited areas.

The Furuno WR-2120 provides high-resolution data within a radius of approx. 70 km with full volume scanning every minute.

WEATHER RADAR INSTALLATION IN Aalesund

Furuno weather radar WR-2120 is installed at Aksla overviewing the city of Aalesund and the surrounding areas, within a radius of 70 kilometers. The radar provides Ålesund municipality with local and accurate weather observations that will be used for development of new and innovative services with the objective of managing municipal resources the best way possible.

GO TO LIVE WEATHER RADAR

VARIOUS COMPATIBLE DATA FORMATS

Binary, CSV, JPG, CF/Radial, Opera Odim HDF5, NEXRAD Level 2.

Rainfall with actively growing storm cells with high precipitation, 50 mm/h and occasionally up to 100 mm/h in local areas. This may cause challenge of drainage of surface water and flooding of sewer system and properties.

Recording above: WR-2120 in use in the 3rd party software Gibson Ridge 2 Analyst to be able to observe different radar outputs for analytical purpose.

Furuno weather radars are easy to install

No heavy machinery required for installation

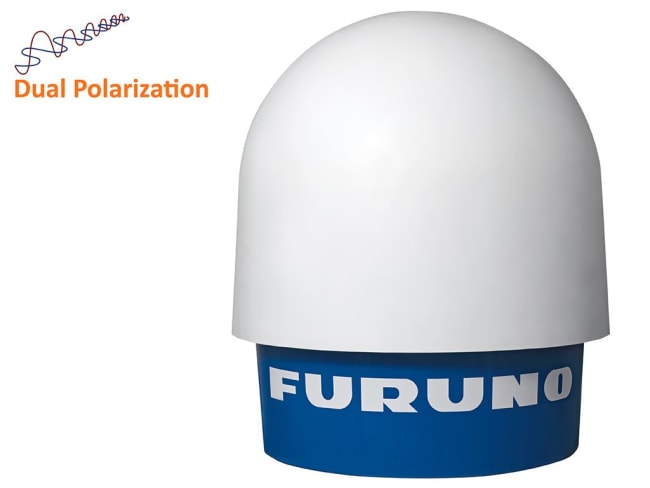

Antenna unit size: 68 kg, ø 1085mm x 1025mm
Signal processing unit: 50 kg, 756 mm x 300 mm x 750 mm
Power requirement: 100 VAC / 240 VAC (10 Amp)
Internet connection: For real-time remote access min.100 Mbps is recommended

The standard set includes:

1 stk. SNSW3041965

1 stk. SNSW30002

1 stk. SNSW30001
