Trawl Sonar TS-337A-B

SKU: 400000190

EAN: 400000190

Stock:

Product name

Product number

First name

Last name

Telephone number

Comment

Would like to be contacted via Email Phone

Beskriv hva hendvendelsen gjelder og en av våre selgere vil deretter ta snarlig kontakt.

Omni trawl sonar with 360° scanning and full tilt functionality. It features a vertical sonar with a 120 kHz frequency and an integrated echo sounder. The system allows user-defined settings that can be saved for later use. Includes a temperature sensor, depth sensor, pitch & roll sensor, and an interface for 1-4 catch sensors.

Description
Specifications

Key Features

Trawl sonar with 360° continuous display
Image updates every 0.8 seconds
Clear and sharp high-resolution image
Displays fish inside and outside the trawl
Optional dual-screen solution with echo sounder shown on a separate display
Customize on-screen functions to suit your preferences and needs

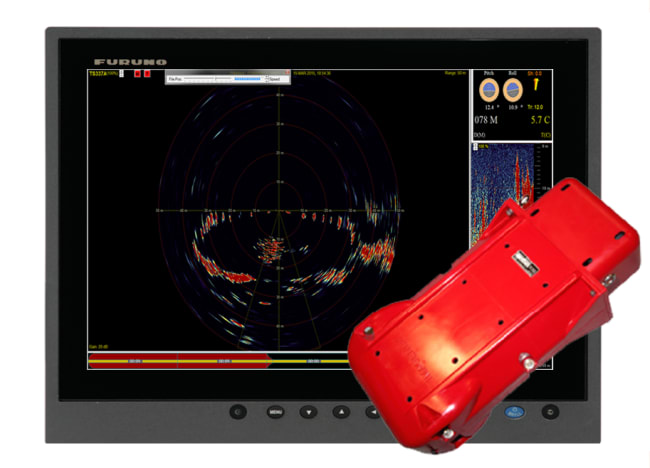

Trawl Sonar TS-337A

The TS-337A is an omni-directional trawl sonar, providing a 360° view with an update rate of every 0.8 seconds. The movable echo sounder beam can be directed in any desired direction within the trawl opening. The echo sounder delivers real-time images of the trawl opening, trawl position relative to the bottom, and the catch entering the trawl. With its omni-directional vertical beam, the system shows the geometry of the trawl opening and the entry of the catch — all in real time. At the same time, it detects fish passing outside the trawl-opening, enabling quick decision-making. A dedicated information window displays Pitch & Roll, temperature, depth, and compass readings. The system also supports connection of up to 4 catch sensors to indicate catch volume as well as time elapsed since sensor activation.
