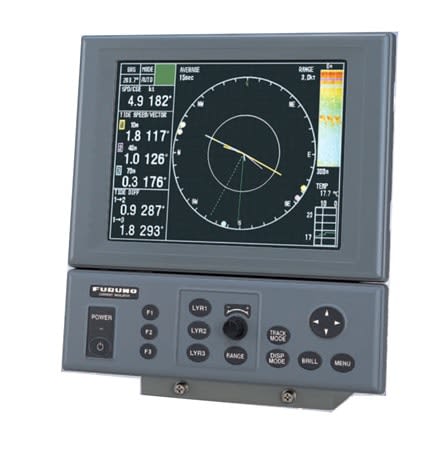

Furuno Current Indicator CI-88 BB
Achieve precise current measurement using Furuno’s reliable acoustic technology. The Furuno CI-88 BB is a current log designed for all types of fishing vessels and hydrographic survey vessels. It provides continuous presentation of current speed and direction in three depth layers, in addition to the vessel’s speed and drift. This variety of real-time data allows for predicting the shape of the gear and planning its deployment.
Key Features

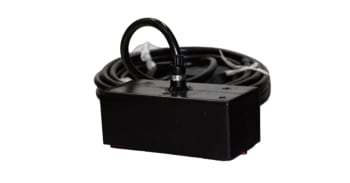

- Compact design with integrated transducer
- Highly stable and accurate current log
- Excellent performance with GPS reference
- Grafisk presentasjon av strømhistorikk
- Continuously displays current speed and direction at 3 selected depths
- Uses 3 beams to compensate for vessel movements such as pitching and rolling
- Current tracking down to 100 m in 3 selectable layers
- Bottom tracking down to 200 m
- Dedicated Nav mode for depths greater than 200 m, using GPS as reference
- Dedicated trawl mode for automatic bottom-referenced current tracking
- Plotter mode with graphical display of historical current data
Current Indicator CI-88 BB
Achieve precise current measurements using Furuno’s reliable acoustic technology. The Furuno CI-88 BB is a current log designed for all types of fishing vessels and hydrographic survey vessels. It provides continuous display of current speed and direction in three depth layers, along with vessel speed and drift. This combination of real-time data helps predict the behavior of the fishing gear and supports effective planning for gear deployment.
Current indicator | |
---|---|
Technology | Singel frequency |
Qty layers | 3 |
Frequency | 288 kHz |
Product details | |
---|---|
Display | Selectable size, addon |
Power supply | 24 VDC |
Connections | NMEA 0183 |
