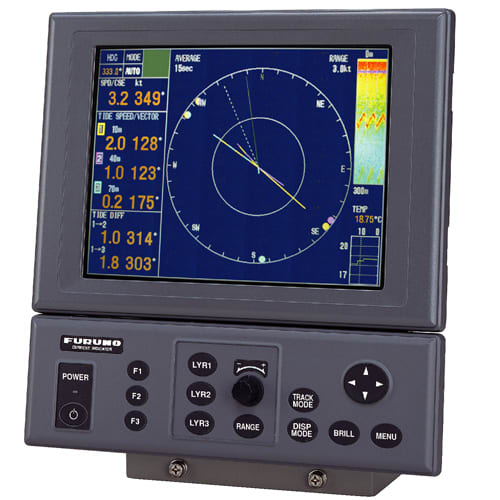

Furuno Current Indicator CI-68 BB
Achieve precise current measurement using Furuno’s reliable acoustic technology. The CI-68 BB current log continuously displays current speed and direction in five depth layers within the water column. To minimize reading errors, the CI-68 BB current log uses three beams to measure current speed. Accuracy is further enhanced when connected to an external GPS and gyro compass.
Key Features
- Compact design with integrated transducer
- Highly stable and accurate current log
- Works excellently with GPS reference
- Graphic presentation of current history
- Continuously displays current speed and direction at 5 selected depths
- Uses 3 beams to compensate for vessel movements such as pitching and rolling
- Current tracking down to 220 m in 5 selectable layers
- Bottom tracking down to 350 m
- Dedicated Nav mode for depths greater than 350 m, using GPS as reference
- Dedicated trawl mode for automatic bottom-referenced current tracking
- Plotter mode with graphical display of historical current data
Current Indicator CI-68 BB
Achieve precise current measurements using Furuno’s reliable acoustic technology. The CI-68 BB current log continuously displays current speed and direction across 5 depth layers in the water column. To minimize reading errors, the CI-68 BB uses three beams to register current speed. Accuracy is further enhanced when connected to an external GPS and gyrocompass.
Current indicator | |
---|---|
Technology | Singel frequency |
Qty layers | 5 |
Frequency | 244 kHz |
Product details | |
---|---|
Display | Selectable size, addon |
Power supply | 220/230VAC 50Hz |
Connections | NMEA 0183 |
