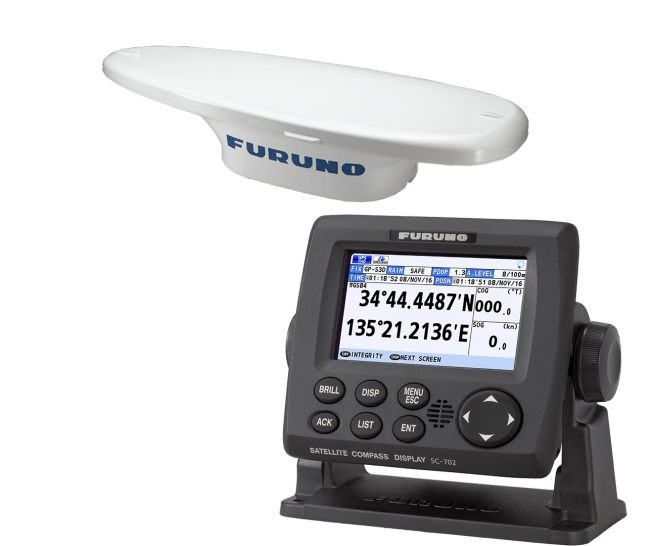

Furuno Satellite Compass SC-70 (Enclosed Antenna)

SKU: IMD0345200D-b

EAN: IMD0345200D

Stock:

Product name

Product number

First name

Last name

Telephone number

Comment

Would like to be contacted via Email Phone

Beskriv hva hendvendelsen gjelder og en av våre selgere vil deretter ta snarlig kontakt.

The SC-70 (enclosed antenna) is a type-approved satellite compass that provides highly accurate information for navigation equipment such as Radar, ECDIS, AIS, Doppler Sonar, and Autopilot. The equipment is 100% maintenance-free and has a very short startup time of approximately 90 seconds. The compass can receive GPS, Galileo, and GLONASS signals, ensuring excellent coverage and increased redundancy in case of GNSS system failure. The SC-70 provides a range of data, including position, heading, ROT (Rate of Turn), and speed over ground in three axes (bow, stern, and longitudinal). The compass is suitable for all types of vessels and can, in retrofit situations, reuse existing antenna cables.

Description
Specifications

Key Features

The SC-70 (closed antenna) and SC-130 (open antenna) are type-approved satellite compasses that provide highly accurate data for navigation equipment.
Short startup time – 90 seconds
100% vedlikeholdsfritt, ingen bevegelige deler
Update rate: 40°/s (twice as fast as the IMO high-speed craft requirement of 20°/s)
Pitch/Roll data available in both analog and digital format for vessel stabilization, sonar, etc.
Easy retrofit using existing antenna cables and LAN converter
Uses a combination of GPS, Galileo, and GLONASS for optimal accuracy and coverage
Wheelmarked as HTD, GPS, and ROTI sensor

Satellite Compass SC-70/130

The SC-70 (closed antenna) and SC-130 (open antenna) are type-approved satellite compasses that deliver highly accurate information to navigation systems such as Radar, ECDIS, AIS, Doppler Sonar, and Autopilot.

This equipment is completely maintenance-free and features a very short startup time—around 90 seconds. The compasses receive signals from GPS, Galileo, and GLONASS, providing excellent coverage and added redundancy in case one GNSS system becomes unavailable.

The SC-70/130 delivers a range of data, including position, heading, ROT (Rate of Turn), and speed over ground along three axes (bow, stern, and longitudinal). These compasses are suitable for all vessel types and can reuse existing antenna cabling in retrofit installations.

Product details
Approval/Class	IMO/MED

The standard set includes:

1 stk. Antenneenhet SC-703-A for SC-70

1 stk. Koblingsboks SC-701-A

1 stk. Skjermenhet SC-702-A-E-1
