BlueBridge™ Compact

SKU: BB-Compact

Product name

Product number

First name

Last name

Telephone number

Comment

Would like to be contacted via Email Phone

Beskriv hva hendvendelsen gjelder og en av våre selgere vil deretter ta snarlig kontakt.

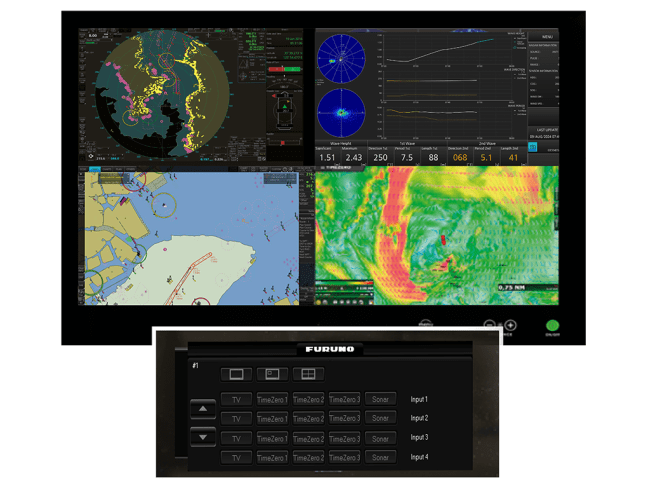

BlueBridge™ Compact is a scalable monitor control system with predefined monitor setup, customized according to the vessels operation. The solution can combine all screen sizes and has support for dual-split and quad-split, when the screens allow for this. The touch screen control unit is easy to operate and has function buttons for centralized dimming. Suitable for service vessels and smaller fishing vessels.

Description

Reliable solution
Easy to use
Various screen sizes can be freely combined
Support for centralized dimming
8.8'' touch control panel
Vessel-specific configuration of sources and screens
Remote support

BLUEBRIDGE™ COMPACT IS A FLEXIBLE SCREEN MANAGEMENT SOLUTION

All systems included in the screen management are connected directly to the screens where the display is desired. The number of systems that can be connected to each screen is determined by the number of inputs available on that individual screen.

On the BlueBridge™ Compact touch panel, users can easily select between the systems connected to the various screens. For screens with dual-split or quad-split capability, users can also select the preferred position on the screen.

BlueBridge™ Compact enables both space and cost savings through efficient utilization of screen surfaces. It also improves ergonomics at bridge workstations by allowing critical systems for different operational modes to be operated within a comfortable reach.

EFFICIENT UTILIZATION OF AVAILABLE SCREENS

Large Screens and Quad-Split

When supported by the screen, users can choose at any time to operate in full-screen mode or display multiple systems simultaneously using dual-split or quad-split view modes.

A typical setup for new builds features two larger forward screens with four DVI ports and a quad-split display. For such setups, 43'' screens or larger are recommended.

On a 43'' screen, each split view corresponds to a 21.5'' screen
On a 55'' screen, each split view corresponds to a 27.5'' screen

Example of a screen setup with large screens and simultaneous quad-split viewing

Smaller Screens and Single Source Selection

On many vessels, placing large screens on the bridge may be difficult or impossible. In these cases, it is better to use smaller screens such as 19'', 24'', or 27''. Depending on the number of available ports on each screen, systems are connected where the display is desired. The screen management system allows for quick and easy switching between available sources, depending on the operation.

Example of a setup with smaller screens, full-screen viewing, and single source selection
