Furuno Radar FAR-1518, 24 VDC

SKU: IMD03411000-b
EAN: IMD03411000
Stock:

Coastal radar for vessels up to 10,000 GT. Delivered with a 19’’ display. Also available in a high-speed version with 48 rpm. The standard version includes all modules and features required for type approval, including PM (Performance Monitor), 50-target ARPA, and AIS module with display of up to 300 targets when AIS is connected. FAR-1518 also features the ACE (Automatic Clutter Elimination) noise reduction function and FTT (Fast Target Tracking), which presents the speed and course of other vessels within seconds.

X-band radar with noise-free presentation

  • 12 kW output power
  • 4 ft., 6.5 ft., or 8 ft. open antenna with beamwidths of 1.9, 1.23, and 0.95 degrees respectively
  • Target tracking provides fast and accurate echo acquisition
  • Noise reduction function (ACE) effectively filters out false echoes
  • AIS display included as standard
  • Compact control unit, can be complemented with trackball RCU-030
  • Supports interswitching, including with radars from the FAR-2xx8 series
  • Can provide radar overlay for TECDIS

IMO X-band radar FAR-1518 (12 kW)

Coastal radar for vessels up to 10,000 GT. Delivered with a 19’’ display. Also available in a high-speed version with 48 rpm. The standard version includes all modules and features required for type approval, including PM (Performance Monitor), 50-target ARPA, and AIS module with display of up to 300 targets when AIS is connected. FAR-1518 also features the ACE (Automatic Clutter Elimination) noise reduction function and FTT (Fast Target Tracking), which presents the speed and course of other vessels within seconds.



Radar
Series FAR-15x8
Radar band X-band (3 cm)
Scanner size 4 ft
Transmitter power 12 kW
Temp. interval -25 - +55 °C
RPM 26
Product details
Display Selectable type approval monitor, addon
Power supply 24 VDC
Approval/Class IMO/MED
The standard set includes:
1 stk. Prosessor RC28RP24-12KE2R2S-18
1 stk. Antenne girboks RSB-120-100-1
Antenna cable RW-0030 15m

00142344000

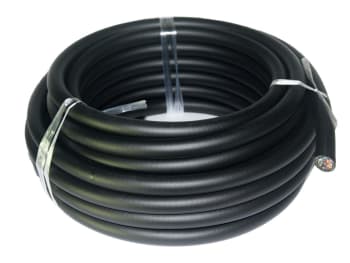

Antenna cable RW-0030 20m

00142345000
Antenna cable RW-0030 30m

00142346000
Cable radar signal 2xx7/15x8 FOIL/FICE 50m

2589800235

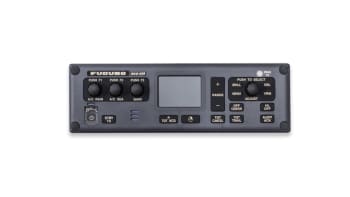

Trackball control unit RCU-030

00002785700
Likeretter PR-241 AC til 24V DC

00003782000
PM-32A PM kit for RSB-120/121

00141949000
X-band antenne XN12AF-R, 4 ft.

00163360000
X-band antenne XN20AF-R, 6,5 ft.

00163361000
Magnetron MAF1615B FAR-1518

00017378011
Wheelmark

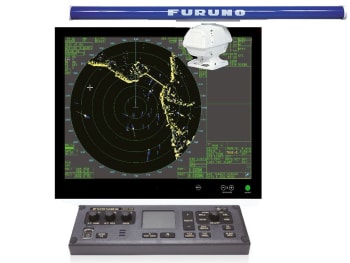

Furuno Radar FAR-1518 HSC, 24 VDC

X-band (3 cm) radar med 24 VDC strømforsyning, for fartøy opp til 10 000 GT. Finnes også i hurtigbåtutgave (48 rpm). FAR-1518 har 50 måls ARPA, AIS-modul med opptil 300 måls visning når AIS er tilkoblet, støydempingsfunksjonen ACE - Automatic Clutter Elimination og FTT - Fast Target Tracking, som i løpet av få sekunder viser andres fartøy fart og kurs.

IMD0341102B-b
Wheelmark
Furuno Radar FAR-1528, 24 VDC

X-band radar med 25 kW sendereffekt, for fartøy opp til 10 000 GT, forutsatt godkjent 19'' skjerm, eller 500 GT med godkjent 15’’ skjerm. Skjerm kjøpes separat. Kan også leveres som hurtigbåtutgave med 48 rpm. FAR-1528 har 50 måls ARPA og AIS-modul med opptil 300 måls visning når AIS er tilkoblet, støydempingsfunksjonen ACE - Automatic Clutter Elimination og FTT - Fast Target Tracking, som i løpet av få sekunder viser andres fartøy fart og kurs.

IMD03412000-b
