Furuno Echosounder FCV-38

SKU: IMD0348300A-b

EAN: IMD0348300A

Stock:

Product name

Product number

First name

Last name

Telephone number

Comment

Would like to be contacted via Email Phone

Beskriv hva hendvendelsen gjelder og en av våre selgere vil deretter ta snarlig kontakt.

The Furuno FCV-38 is a powerful, fully stabilized echo sounder that utilizes both multi-beam and split-beam technology. Combined with a low operating frequency and high transmission power, the FCV-38 provides rich datasets, long detection range, excellent target discrimination, and effective noise filtering. Data export to NetCDF4 format is available. The transducer from the previous model, the FCV-30, can be reused for retrofit installations.

Description
Specifications

Fully Stabilized Split-Beam Echosounder with 5 Independent Beams

4 kW transmit power and 38 kHz frequency for long-range detection
Large transducer with 64 elements
5 beams can be operated independently with up to 20º tilt
Integrated motion sensor provides pitch and roll stabilization
Heave compensation available when connected to satellite compass
3 simultaneous graphs for size distribution analysis
FCV-30 transducer can be reused in retrofit installations

Fully Stabilized Echosounder with 5 Independent Beams

The FCV-38 is the successor to our popular low-frequency echo sounder, the FCV-30. For retrofit installations, existing FCV-30 transducers can be reused. Operating at a low frequency of 38 kHz with a high transmission power of 4 kW, the FCV-38 offers a long detection range of up to 1500 meters. The echo sounder utilizes split-beam technology and features five beams that can be directed as needed, with up to 20° tilt. This provides a rich dataset suitable for advanced analysis and a noise-free presentation with accurate echo reproduction.

The FCV-38 is fully stabilized, equipped with an integrated MRU (Motion Reference Unit) for pitch and roll compensation. Heave compensation is achieved by connecting a satellite compass. Full stabilization is essential for reliable bottom analysis and accurate assessment of fish size and size distribution.

With a detection range of up to 1500 meters and consistently high data quality at all depths, the FCV-38 provides ample performance margin for all types of fisheries. For vessels contributing to research, the FCV-38 can export datasets in CDF4 format, enabling complete and research-grade measurements suitable for advanced scientific analysis.

FCV-38 Multibeam Technologi

The FCV-38 features five independent beams that can be freely enabled or disabled. A new addition in the FCV-38 is the semi-simultaneous transmission mode, where only selected beams transmit at the same time. This increases the power per beam while reducing the risk of noise caused by beam-to-beam interference.

FCV-38 Stabilization

Split-beam technology enables pitch and roll stabilization. The FCV-38 uses a large transducer with 64 individual elements—each forming a channel for pulse transmission and echo reception. The stabilization algorithm treats TX and RX independently, enabling highly accurate imaging of the bottom and bottom structures. For optimal stabilization, the FCV-38 can be connected to a satellite compass for heave compensation.

Without pitch and roll stabilization, fish may go undetected.

Stabilization keeps the beams steady on the selected targets.

FCV-38 Size Distribution Analysis

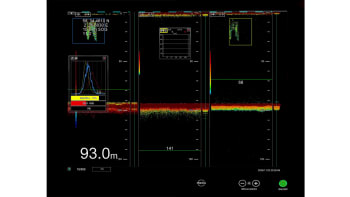

Split-beam technology combined with full stabilization is critical for reliable fish size analysis. The FCV-38 can analyze an entire school or portions of it and display 3 simultaneous graphs based on 3 different sections of a fish school. Size distribution presentation is identical to that of the Furuno echosounder FSS-3BB.

Four Modes for Size Distribution

The FCV-38 offers four analysis modes for fish size distribution: across the entire detection range, within a specified range, fish located near the seabed, within a user-defined rectangle placed over f.ex.: part of a school. Up to three rectangles can be set simultaneously. Each rectangle and its corresponding graph are color-coded with matching frames, making it easy to identify which graph represents which section.
