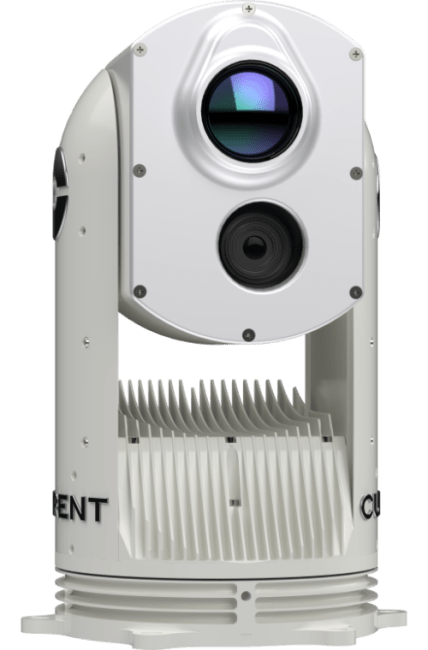

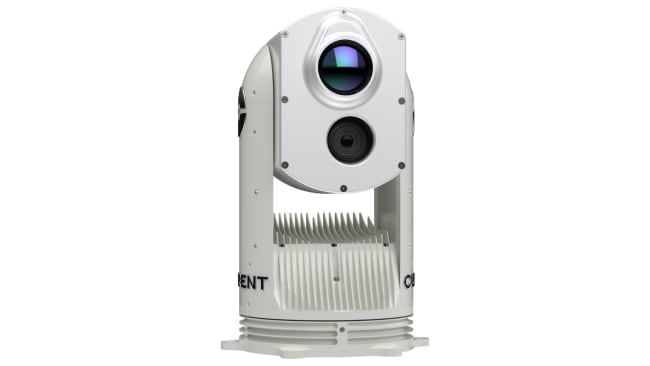

Night Navigator 3050 Electro-Optical Infrared System Dome Up
Produktnummer:
NN3050-U
The Night Navigator 3050 integrates an MWIR cooled thermal imager, a high definition (HD) day camera with an impressive low light mode in a gyro-stabilized sensor platform. This full spectrum imaging system offers exceptional performance.
- Rugged, maritime, low maintenance design
- Clear, highly detailed image, in day and night
- Best of class object detection in low light levels
- Tracks Radar cursor, ARPA, AIS and video targets
- Streams H.264 or H.265 video over IP network
- Picture in Picture (PiP) of two live video signals
- Single payload with no junction boxes modules
MWIR - COOLED THERMAL
| Termisk kamera | |
|---|---|
| Infrared Sensor | Cooled |
| Spectral Range | 3 - 5 µm |
| Sensor Type | MWIR (Mid Wave Infrared) |
| Resolution | 640x512 pixels |
| Field of View | 28 - 2 ° |
| Continuous Optical Zoom | 14 x |
| Digital Zoom | 4 x |
| F Stop | f/5.5 |
| IR Detection Range - Human (1.8x0.5 m) | 6.8 km |
| IR Detection Range - NATO (2.3x2.3 m) | 14.1 km |
| Detection Range | Long-Range (14 km - 29 km) |
| Kamera | |
|---|---|
| Sensor Type | HD Day / Low Light |
| Resolution | 1920x1080 pixels |
| Field of View | 64 - 2.4 ° |
| Continuous Optical Zoom | 30 x |
| Continuous Digital Zoom | 12 x |
| Low Light sensitivity in black and white mode | 0,00008 lux |
| Opsjoner | Videotracking, Videotracking included |
| Produktdetaljer | |
|---|---|
| Skjerm | Valgfri størrelse, tillegg |
| Strømforsyning | 24-36 VDC |
| Power Max Consumption | 320 W |
