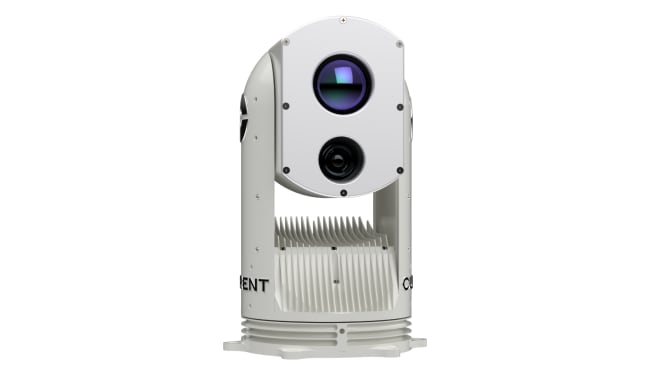

Night Navigator 3026 Electro-Optical Infrared System Dome UP
The Night Navigator 3026 integrates a superior LWIR uncooled thermal imager and a high definition (HD) day camera / low light in a gyro-stabilized sensor platform. This full spectrum imaging system offers exceptional performance.
| Termisk kamera | |
|---|---|
| Infrared Sensor | Uncooled |
| Spectral Range | 8 - 12 µm |
| Sensor Type | LWIR (Long Wave Infrared) |
| Resolution | 640x512 pixels |
| Field of View | 43.4 - 8.2 ° |
| Continuous Optical Zoom | 5 x |
| Digital Zoom | 4 x |
| F Stop | f/1.2 |
| IR Detection Range - Human (1.8x0.5 m) | 2.1 km |
| IR Detection Range - NATO (2.3x2.3 m) | 5.1 km |
| Detection Range | Short-Range (≤ 5 km) |
| Kamera | |
|---|---|
| Sensor Type | HD Day / Low Light |
| Resolution | 1920x1080 pixels |
| Field of View | 64 - 2.4 ° |
| Continuous Optical Zoom | 30 x |
| Continuous Digital Zoom | 12 x |
| Low Light sensitivity in black and white mode | 0,00008 lux |
| Opsjoner | Videotracking |
| Produktdetaljer | |
|---|---|
| Skjerm | Valgfri størrelse, tillegg |
| Strømforsyning | 24-36 VDC |
| Power Max Consumption | 320 W |
Why choose Night Navigator 3026
-
Rugged metal construction, engineered for continuous offshore operation
-
Advanced gyro-stabilized EO/IR platform enhances image clarity in high sea states
-
Extended thermal detection range for improved situational awareness
-
Wide field of View for close range operation
-
Exceptional low-light and thermal sensitivity for SAR/MOB and coastal surveillance
-
A balanced solution for missions needing more range without cooled thermal cost
Night Navigator 3026
The Night Navigator 3026 builds on the proven Night Navigator platform with optical zoom and enhanced thermal performance, while maintaining the same rugged, metal construction designed for long-term maritime deployment. This system is purpose-built to operate reliably in demanding offshore environments.
Its advanced gyro-stabilized EO/IR platform delivers exceptional image stability, even in high sea states and choppy sea. This stabilization is critical for extracting the full performance of the high-sensitivity LWIR uncooled thermal imager, allowing operators to detect targets at distances of up to 5.1 km. The NN3026 is equiped with a optical zoom, with a wide field of view. This brings increased situational awareness in navigation and operations close to the vessel, but also have the flexibility for short to mid range detection. Combined with outstanding low-light performance from the HD day camera, the NN 3026 provides a noticeable step up in clarity, usability, and operator confidence for coastal surveillance, SAR missions, fishing and offshore vessels and unmanned vessel operations.
